1 XO FLEX UNIT IN GENERAL

XO FLEX is a dental treatment unit with:

• A compact floor-mounted unit stand with lifting mechanism for XO Patient Chair (side lift)
• A cuspidor
• A single-column pivoting articulated balanced arms for instrument bridge, operating light and display
• The unit is designed with over-the-patient delivery of unit instruments for working primarily on supine patients in order to obtain healthy working conditions and efficient workflow.

The user interface is yielding maximum focus on the oral cavity and optimal infection control.

Please note: XO Patient Chair must be ordered separately!

XO FLEX unit with lifting mechanism for XO Patient Chair (XO-102)

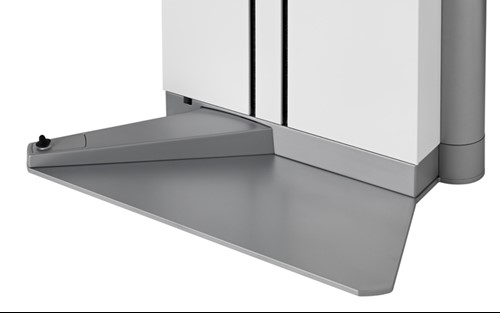

1.1 UNIT STAND

The unit stand is manufactured in steel and aluminum with:

• Service panels for easy access to XO Water Disinfection, XO Suction Disinfection and auxiliary connections
• Detachable aluminum side covers for easy service access
• Two buttons located on the top of the unit stand for patient activation of cuspidor flush and cup filler



1.2 WATER AND AIR SYSTEM

All incoming water is filtered (50 μm), eliminating particles from main water supply.

Incoming compressed air is filtered (5 μm).

A main water valve automatically switches water on/off when activating the main switch. A leakage sensor provides automatic shut-off of water supply if an internal water leak is detected.

An integrated water softener decarbonizes water for use in the XO unit and protects the internal components of the unit by reducing the limescale content. Furthermore, the taste of the water is improved by removing unpleasant odors and tastes, e.g. chlorine.



1.3 CUSPIDOR AND CUP FILLER

Detachable and thermodisinfectable cuspidor bowl in glass with gold trap. Swiveling stainless steel faucet with safety switch allowing easy removal of cuspidor bowl for cleaning. Detachable and thermodisinfectable cup holder and stainless steel faucet.

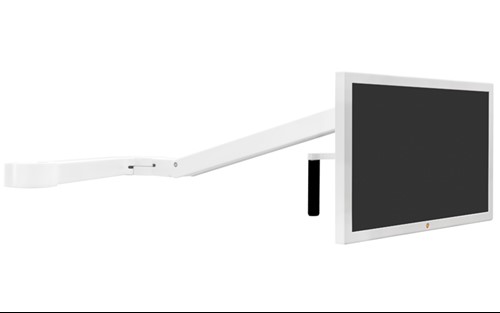

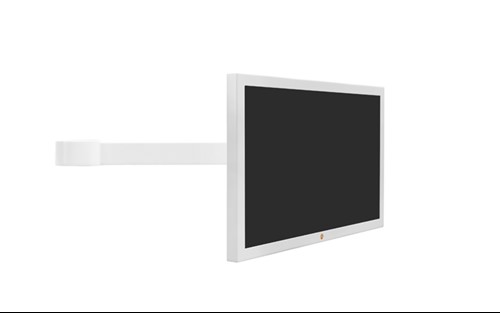

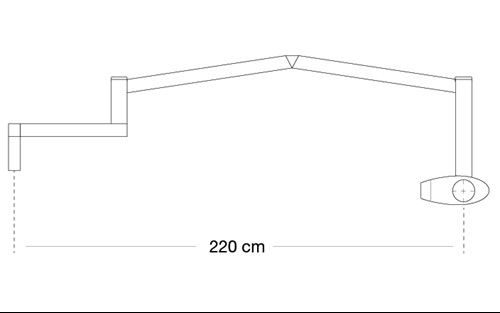

1.4 ARTICULATED BALANCED ARMS

Arms for instrument bridge, operating light and XO HD Display pivoting on one vertical column. Arms manufactured in aluminum and connected via slim joints with roller bearings. Adjustable and maintenance-free balance spring and friction brakes for smooth and effortless operation. Steel covers fitted with magnets.



1.5 INSTRUMENT BRIDGE

Fitted with up to six detachable unit instruments:

• The 3-/6-function syringe is placed to the left (near the dental assistant) or to the right (unit for left-handed dentists)
• All other unit instruments may be placed as required by the end users
• When ordering the unit please specify where the different instruments should be placed
• After delivery it is possible for a technician to rearrange the instruments on the bridge



The instrument bridge is supplied with:

• A detachable instrument pad
• A detachable bridge protection pad
• Two autoclavable handles
• A display
• A speaker with adjustable volume providing acoustic signals to the operator
• A programming button

The instrument bridge is prepared for a hand-instrument table.



1.6 INDIVIDUALLY BALANCED AND DETACHABLE UNIT INSTRUMENTS

Depending on the weight of the instrument, the instrument suspension is individually adjusted for optimal balance.

All unit instruments are fitted with a plug and may be attached/detached by the users for cleaning and disinfection – without using tools.



1.7 INSTRUMENT BRIDGE DISPLAY

At the front of the instrument bridge a display for monitoring instrument data is fitted. The light intensity of the display text field is adjustable.
The display consists of:

• One 8-digit text field: Indication of the maximum preset value of the primary instrument parameter (for example speed) when the instrument is lifted forward, but not activated – and the current value of this primary parameter when the instrument is activated


• Three green LEDs for indication of selected amount (three levels) of spray water or for spray water off


• One blue LED: Indication of spray air on/off


• One white LED: Automatic chip blow enabled/disabled



1.8 HANDS-FREE OPERATION

All functions of XO FLEX unit, patient chair and instruments are controlled hands free using the foot control and/or chair base joystick.



1.9 FOOT CONTROL

The foot control is fitted with a pedal and joystick.

When all unit instruments are at rest the foot control manages functions related to the unit and chair etc.

When a unit instrument is lifted forward the foot control manages this active instrument.

The pedal can be activated in three directions (left, right and down).

The joystick can be activated in four directions (north, east, west and south).

In addition, the foot control is equipped with two activation buttons and a hoop in stainless steel.



1.10 CONTROL OF MICRO MOTOR

Speed control method: Variable.

Selection between three (maximum) speed levels in the range 100 – 40,000 RPM + 20%.



1.11 ELECTRONIC CONTROL OF “AIR” (TURBINE OR AIR SCALER, FOR EXAMPLE) INSTRUMENT

Speed (power) control method: One-step.

Selection between three speed/power levels.



1.12 ELECTRONIC CONTROL OF SPRAY WATER AND AIR

The amount of spray (irrigation) water and air is controlled electronically using proportional solenoid valves.

The spray water may be adjusted in the range: 10 – 70 ml/min ± 20% depending on the dimensions of the spray pipes in the attached instruments.

Spray air can be set between 0 – 100% of maximum.



1.13 AUTOMATIC CHIP BLOW

Short blast of high-pressure chip air each time an instrument with spray water stops. Keeps the preparation dry and helps the operator focus on the work task.



1.14 CONTROL OF SCALER

Control method: One-step.

With selection between three power levels.

Irrigation water for scalers may be adjusted in the range: 10 – 90 ml/min ± 20%.

Selection between three irrigation water levels (and no irrigation).



1.15 CHAIR BASE JOYSTICK

In addition to the foot control, a chair base joystick for controlling the patient chair is fitted.



1.16 AUTOMATIC FUNCTIONS

The following optional automatic functions are available:

• Operating light on/off automatically when the patient chair reaches/leaves working position
• Cuspidor rinse starts automatically when cup filler stops
• Cuspidor rinse starts automatically when the patient chair reaches the rinse position



1.17 SOFTWARE CONTROL

All XO FLEX functions are software controlled.

Latest software (firmware) version is 4.02, released 2017-03-02.



1.18 CONFIGURATION

• Patient chair: Position 1 and 2 as well as rinse position


• Micro motor:
  • Maximum speed (3 levels)
  • Amount of spray water (3 levels)
  • Amount of spray air (% of maximum)


• Air instrument (turbine)
  • Speed/power (3 levels)
  • Amount of spray water (3 levels)
  • Amount of spray air (% of maximum)


• Scaler:
  • Power (3 levels)
  • Amount of irrigation water (3 levels)


• Light curing lamp: Curing time (3 selections) and soft start


• Peristaltic pump: Selection of instrument to be attached


• Cuspidor flush: Time


• Cup filler: Time


• Enable/disable automatic operating functions of:
  • Cup filler
  • Cuspidor
  • Operating light


• Enable/disable control of operating light with foot control



1.19 XO FLEX FOR LEFT-HANDED DENTIST

Left-handed configuration is obtained by fitting the:

• 3- or 6-function syringe on the right side of the instrument bridge
• The XO Ambidex suction hose holder enables you to work right handed, left handed, SOLO or in DUO



1.20 ASEPSIS, CROSS INFECTION, CLEANING AND ENVIRONMENTAL CONTROL FEATURES

XO FLEX is designed with smooth and easy-to-clean surfaces.

Metal parts of XO FLEX are painted using an antimicrobial powder coat. A combination of agents with nanoscale silver gives a long-term protection against formation of bacteria and fungi on the surfaces.

The unit is supplied with autoclavable handles, suction nipples, cover for instrument holder and XO Patient Tray.

Other XO FLEX features that enhance asepsis and reduce environmental footprint:

• Hands-free user interface
• Automatic chip blow
• XO Water Disinfection
• Backflow prevention
• XO Suction Disinfection
• Automatic functions



All surfaces and XO Comfort fabric may be disinfected and/or cleaned with:

• XO Intensive Disinfection – for disinfection of all surfaces – 6 x 1 liter (AP-831)
• XO Gentle Disinfection – for disinfection of sensitive surfaces – 6 x 1 liter (AP-832)
• XO Fabric Make Up – for cleaning and care of fabric surfaces on patient chair and operators’ seats – 1 x 0.5 liter (AP-833)



1.21 INSTALLATION REQUIREMENTS

• Mains supply: 230 VAC ± 10%, 50 Hz with earth. Main fuse 10 A


• Suction motor control cable: Min. 2 x 0.08 mm² and max. 2 x 0.5 mm². Max. 2 A / 60 V DC or 2 A / 25 V AC


• Suction motor capacity: < 300 liters/min.


• Assistant call control cable: Min. 2 x 0.08 mm² and max. 2 x 0.5 mm². Max. 2 A / 60 V DC or 2A / 25 V AC


• Equipotential earth 1 x 4.0 mm². To be connected if required by national law


• Water:
  • Pipe with 3/8” female internal thread – preferably fitted with a ball valve
  • Inlet pressure 2.5 – 6 bar


• Air:
  • Pipe with 3/8” female internal thread – preferably fitted with a ball valve
  • Inlet pressure 5.5 – 8 bar


• Drain: Plastic pipe Ø 32 mm with socket


• Suction: Plastic pipe Ø 32 mm with socket


• XO FLEX is to be fixed to the floor with 5 bolts

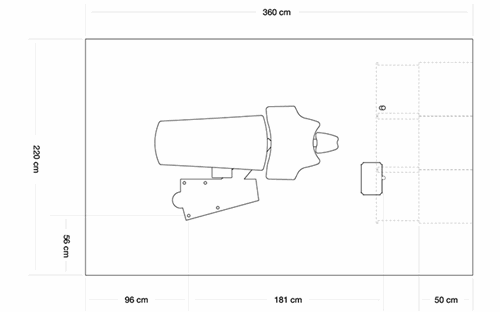

• XO FLEX requires a floor surface of less than 8 m² cabinets – see section 15.1



1.22 MAINTENANCE, TECHNICAL SERVICE, WARRANTY AND EXPECTED LIFETIME

XO FLEX is to be maintained as prescribed in the supplied documentation.

A preventive service checkup is to be performed by a certified technician at intervals of 12 months.

When it is time for service a message is displayed in the bridge display.

• A Service including checkup and exchange of parts contained in A service kit – 12 months, 36 months etc. after installation – expected labor: 1.5 hours
• B Service including checkup and exchange of parts contained in B service kit – 24 months, 48 months etc. after installation – expected labor: 3.5 hours



When the preventive service checkups have been carried out according to the guidelines, the warranty is extended from 12 to 36 months after installation.

XO FLEX unit has an expected lifetime of at least 10 years (guaranteed delivery of spare parts and technical back up). Components such as intraoral video cameras, PC screens etc. may have a shorter life.



1.23 ENVIRONMENTAL REQUIREMENTS

Operating conditions:

Temperature: +15°C – +35°C
Relative humidity: 20% – 95%
Air pressure: 700 hPa – 1060 hPa

Transport and storage conditions:
Temperature: -40°C – +70°C
Relative humidity: 10% – 95%
Air pressure: 700 hPa – 1060 hPa



1.24 LEGAL

XO FLEX is designed for use by dentists and other qualified personnel for prevention and treatment of human teeth diseases.

XO FLEX unit:

• Is in compliance with relevant requirements concerning class IIa equipment in Council Directive 93/42/EEC on medical devices
• Has been developed, manufactured, and handled in accordance with ISO 13485
• XO FLEX fulfills requirements of:
  • EN 60601-1
  • EN 60601-1-2
  • EN 1640



1.25 UNIT COLORS

Color of unit base: XO Silver (IGP 6802/gloss 20).

Color of unit column: XO Silver (IGP 6802/gloss 20), Traffic White (RAL 9016/gloss 20).

Color of stand, arms for bridge, light and screen, instrument bridge and operating light: Traffic White (RAL 9016/gloss 20).

Color of handles, instrument bridge pad, suction, foot control and other details: Black Grey (RAL 7021).

Please note: Minor differences in color of different parts of the product may occur due to different materials and different paint processes.

Please note: Exposure to sunlight may change colors over time.



Note: Slight color differences may occur.
